What is a Workflow?

A workflow in Invopop is a sequence of steps executed for each incoming job. Each step is powered by the provider of a service. Examples of services include:
  • Generating PDFs
  • Forwarding invoices to tax agencies
  • Modifying documents
  • Sending emails
  • Posting webhooks
  • Sending documents to ERPs or other systems
Workflows automate and streamline your document and invoicing processes. Invopop ensures each step is executed reliably, with built-in retries and error handling. The steps are executed sequentially (the next step will only execute until after the previous one has completed) so you don’t need to handle asynchronous responses.

​
Anatomy of a Workflow

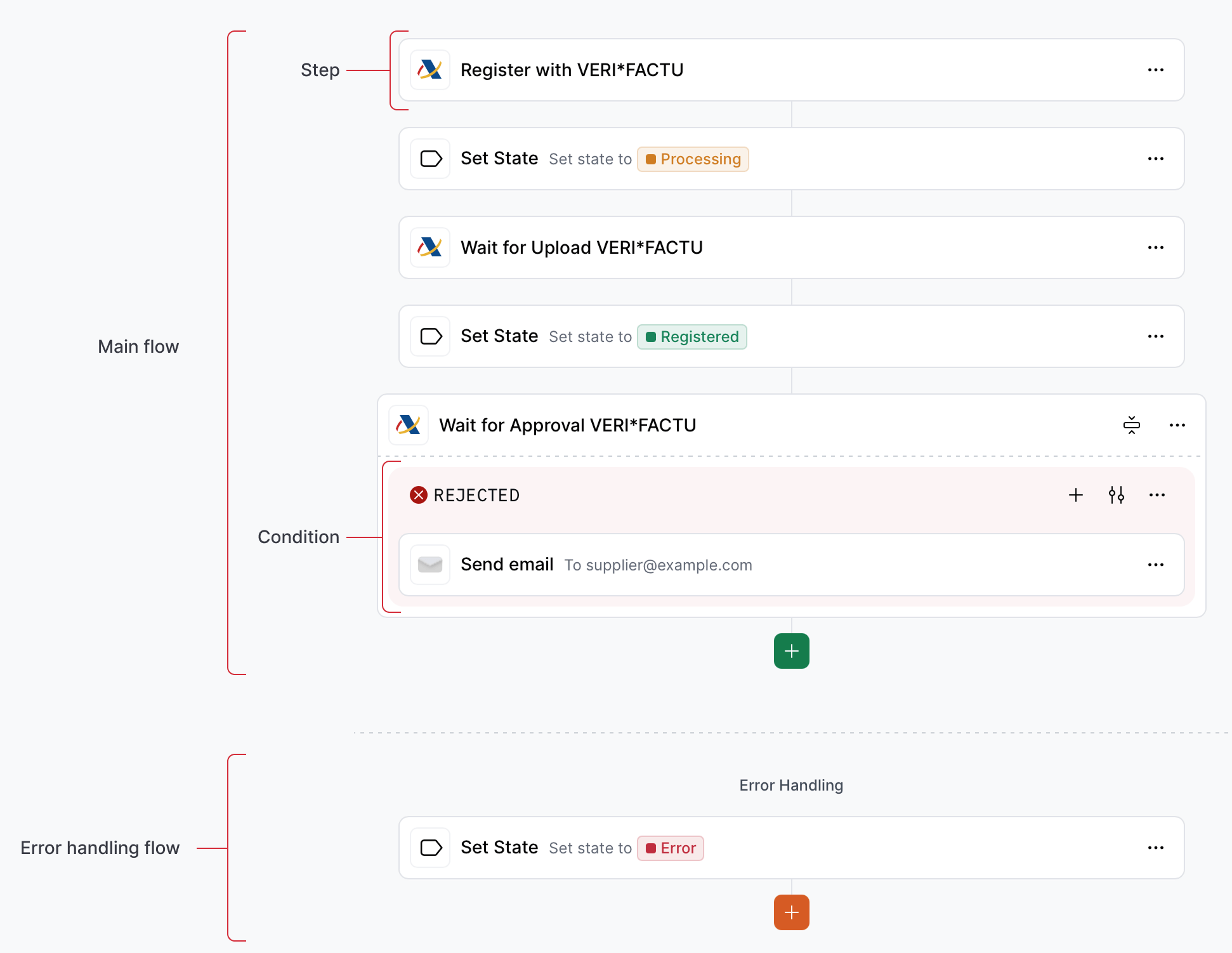

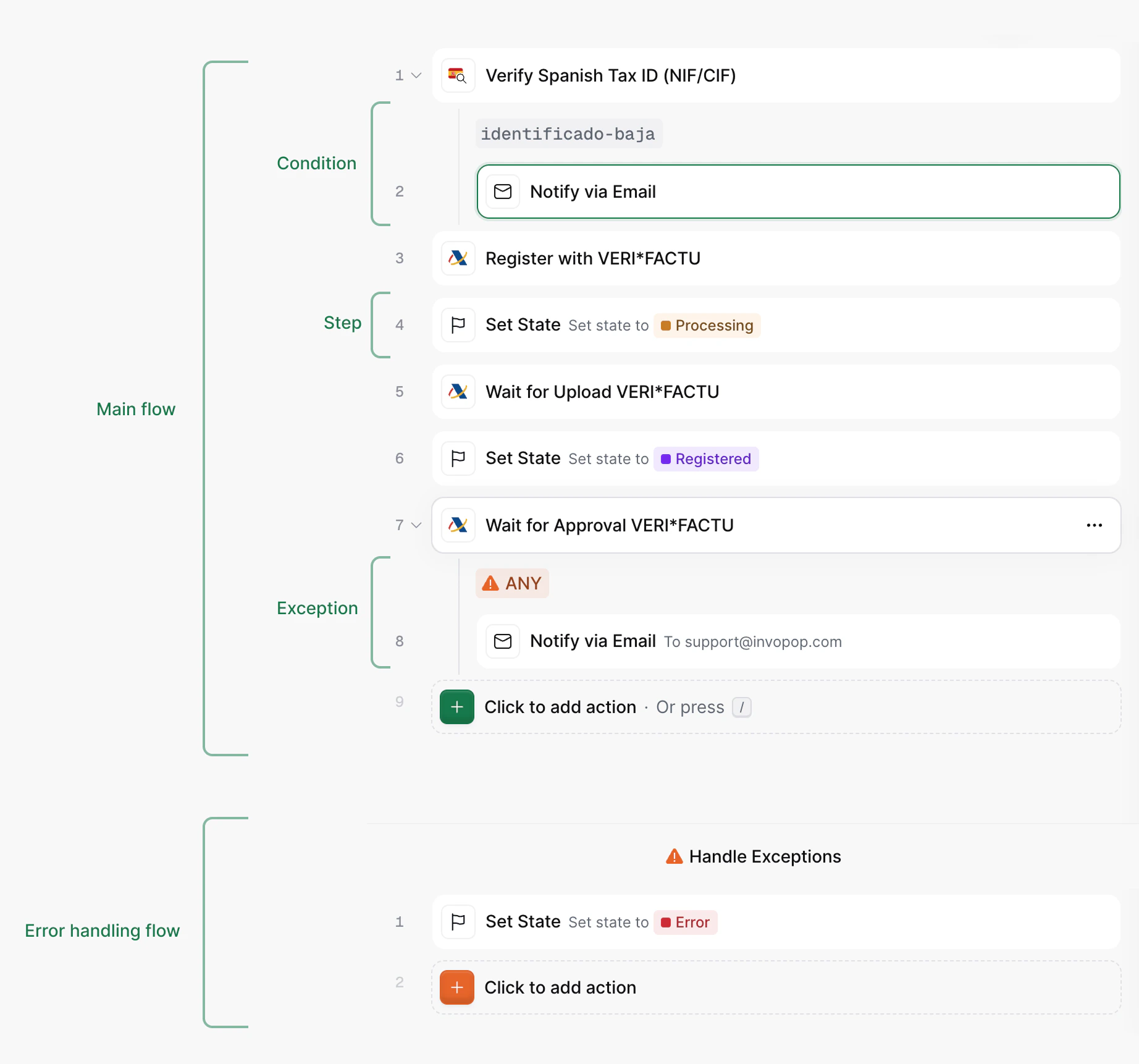

Parts of a workflow
A workflow is composed of two main areas:
  • Main flow: defines the standard sequence of steps that the workflow follows under normal conditions. It represents the intended execution path, showing how tasks progress when the steps execute correctly (OK) and when exceptions or errors are handled within conditions.
  • Error handling flow defines the sequence of steps when an unhandled error or exception occurs. It allows you to specify alternative actions, recovery logic, or notifications to ensure the process can handle unexpected conditions gracefully. Keep in mind the error handling flow is executed if a step does not handle its own error through a condition.
Both flows are composed by steps which can contain conditions.
  • Steps are action performed with the entry being processed, such as sending the document to a tax authority, generating a PDF, or sending a notification to the customer or issuer.
  • Conditions determine the logic that directs how a workflow proceeds when there’s not an error. They evaluate the status and code outcome of a given step, and if there’s a match, it will execute the steps contained within that condition. Conditions are often used in the “If / Else” step but can be used to handle non-error responses from other steps.
  • Exceptions when a step returns a KO, the workflow will continue in the error handling flow by default. However, sometimes you need to handle an error differently from the rest, and adding an exception will prevent the workflow from continuing on the error handling flow, allowing you to handle that case specifically.

​
How to create a Workflow

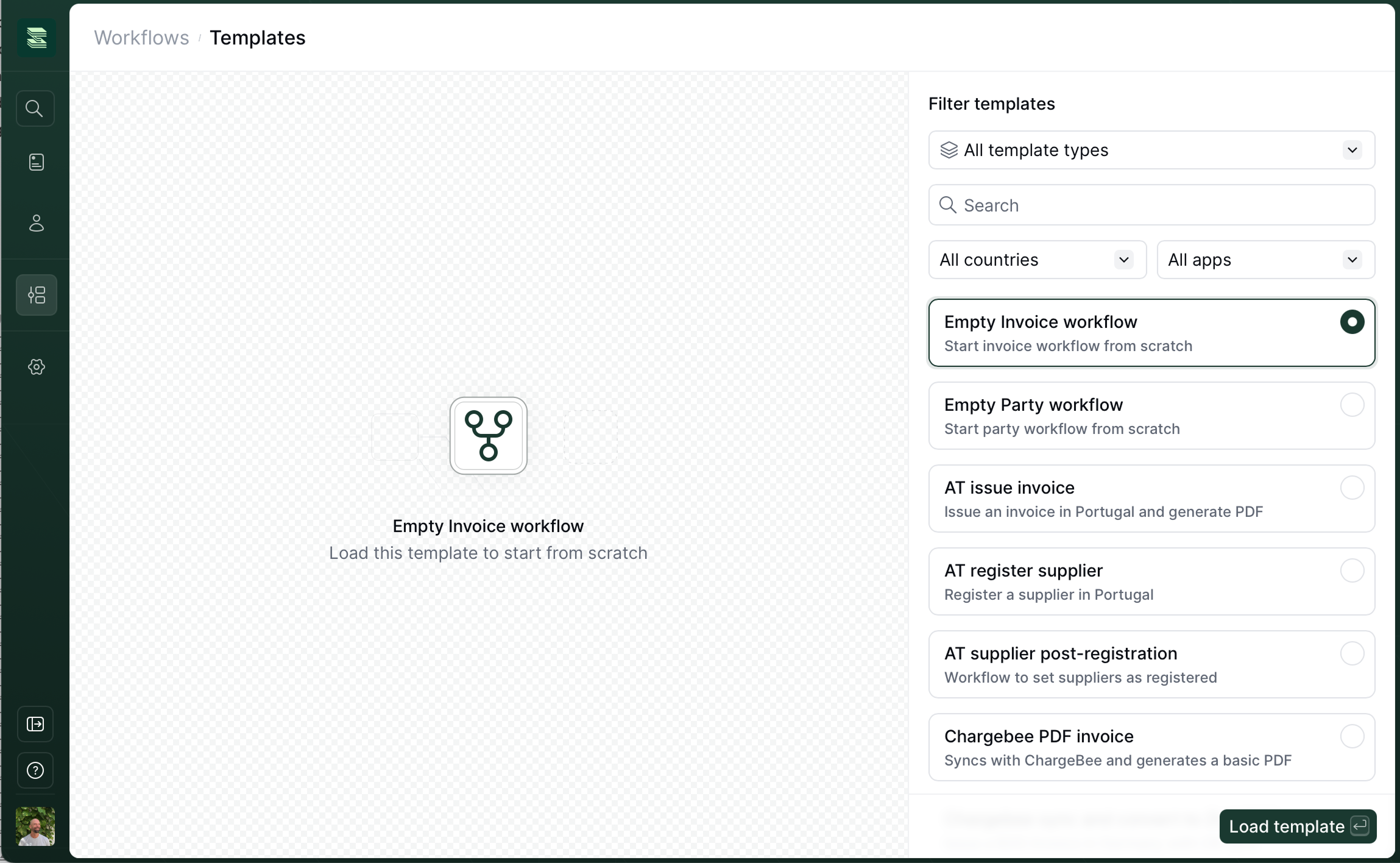

Although workflows can be created via the API, we strongly recommend using the Invopop Console for an easier set up. In the Workflows section click on + Create workflow. You will see a template selection screen. The first two items are blank workflows for each document type: Parts of a workflow
  • Empty Invoice workflow: for sales or expenses.
  • Empty Party workflow: for suppliers or customers.
Choose Empty Invoice workflow for this example and then click Load Template. Give your workflow a name and description by filling the fields on the right sidebar. Add steps to your new workflow by tapping on the + Add step button and selecting an action from the right. Some steps will require configuration in order to function correctly. The “developer mode” Developer mode switch switch at the top right of the canvas can be used to display the JSON representation of the workflow. This makes it easy to copy and paste workflows from examples or other workspaces. Make sure to return to the visual editor view to ensure the document is validated.

​
Creating conditions and exceptions

Conditions create blocks that execute when a given code matches the response of a workflow step, without an error. There are two status signals (OK and KO) plus Any, which matches regardless of the status. Exceptions create blocks that execute when a KO es returned from a workflow step, and has an optional code to further narrow down the exception condition. Codes are generally text or numbers returned by providers. Only some steps will return codes along with their status signals. For example, the Send VERI*FACTU (Spain) step will return the error code as specified by the AEAT along with the KO status signal. Since GOBL already handles many of the validations in tax authorities lists, we recommend only implementing conditions which happen in your workflow with certain regularity and which should be automated. As an example, we will handle the case where a supplier is not registered in the taxpayer census by the AEAT:
1

Add a condition or exception on the step

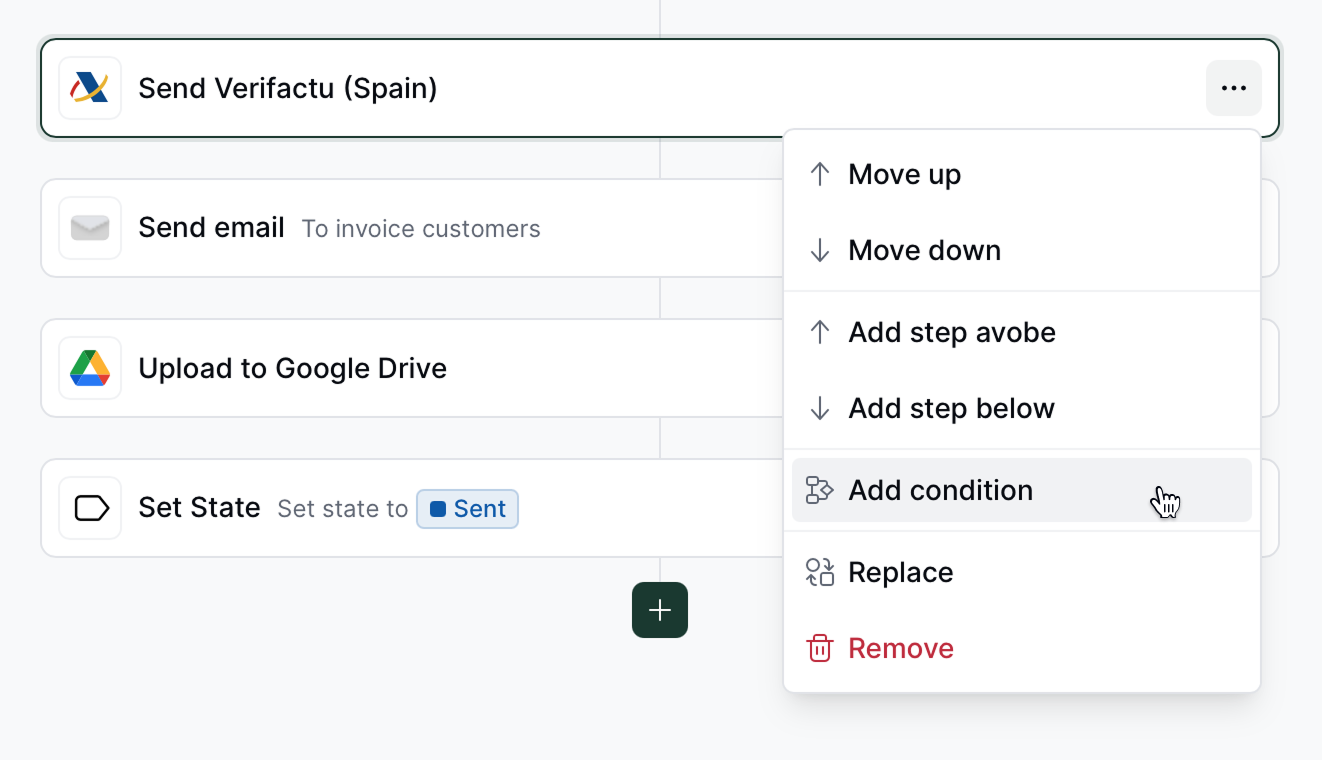

On the desired step, click on the menu button ... and select Add condition.
Add condition
2

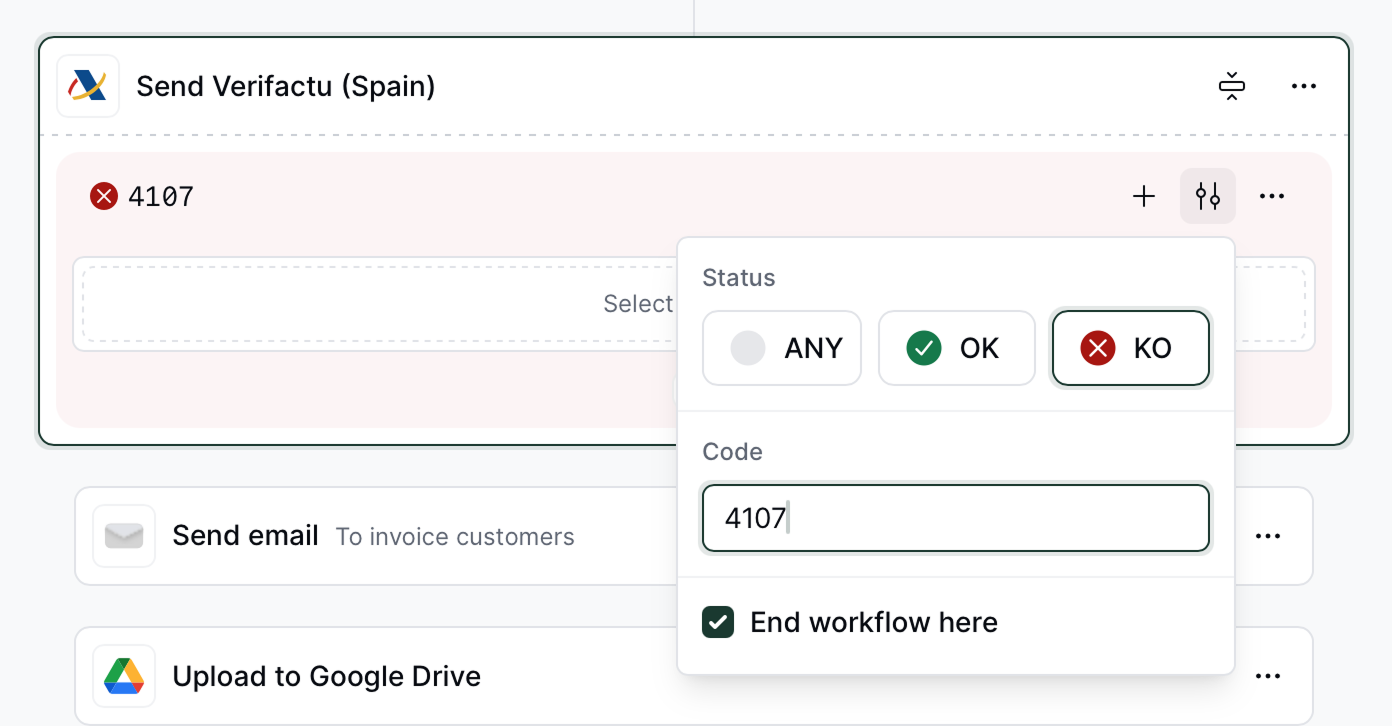

Configure the condition or exception

Add match conditions
Configure the matching conditions in the popover
3

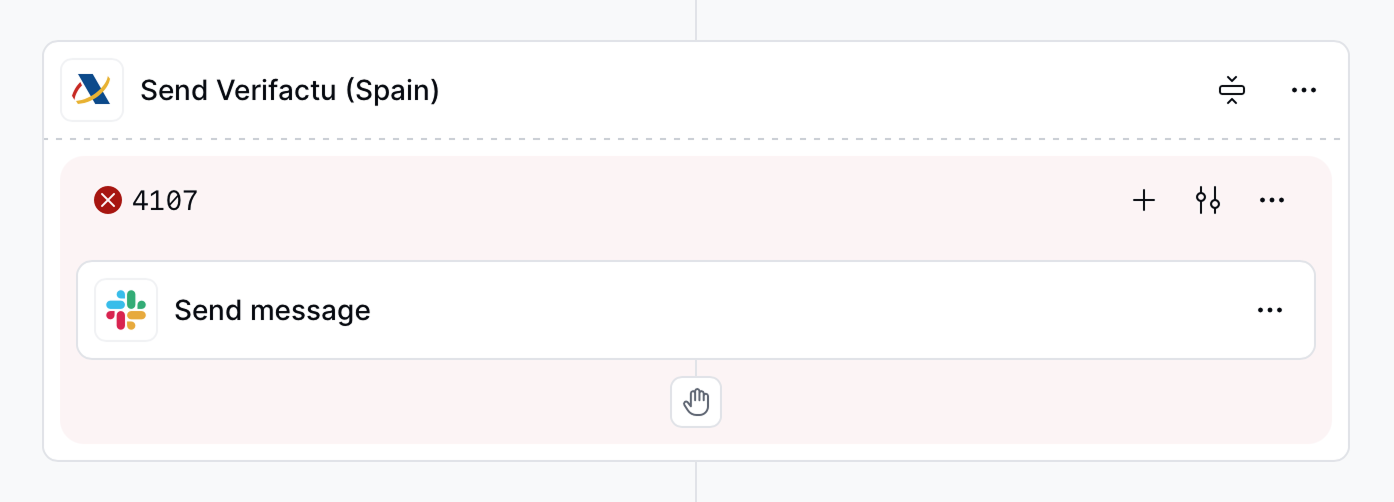

Add an action to the condition block

Add condition action
Click on “Select an action” and handle the condition as you wish. In this workflow, we have added an If / Else step that reads the country of a customer, returning true or false, and then performing the required lookup for each type of customer (AEAT for Spanish cusomters and VIES lookup for EU ones), then, if the tax id is not found, the error is handled by sending a webhook.

​
Running a Workflow

Workflows in Invopop can be executed through the following methods:
  • Manually via the Invopop Console
  • Via API calls to the create job endpoint
  • Automatically by an embedded application.
Workflows are executed on silo entries (such as invoices or suppliers), this action creates a job. When a job is run, the silo entry will be updated with any changes or attachments generated during processing. The status of a job can be seen in the silo entry’s activity tab, or in the Workflows → History section accessible from the left sidebar.

​
Running from the Console

There are three ways to run a workflow from the Console:

​
From a silo entry

While viewing an invoice, supplier, or other silo entry, click Run Workflow in the top toolbar.
Run Workflow button in the silo entry toolbar
This opens a panel where you search for and select the workflow to run. The current entry is used as the document automatically.
Workflow selection panel from a silo entry
Click Run Workflow to create the job. This method does not support passing arguments — the job runs with the selected entry only.

​
From the workflow editor or list

You can also start a run from the workflow side:
  • From the workflow editor: Click the Run button in the top bar while viewing a workflow.
Run button in the workflow editor
  • From the workflow list: Click the ... menu on any workflow row and select Run.
Run option in the workflow list menu
Both options open a panel where you configure the job inputs:
Run workflow panel with document and arguments fields
  • Select a document: Search for and select an existing silo entry (invoice, supplier, etc.) to process.
  • Arguments: Provide string key-value pairs that will be passed to the workflow steps. The specific keys and values depend on the workflow — for example, a KSeF import workflow might expect a ksef-number and nip argument.
A job requires at least one of these: a document or arguments. You can also provide both. For example, a sync workflow may need a party document selected and date range arguments.
Run workflow panel with a document and arguments filled in
Click Run workflow to create the job.
When a job is run with arguments only and no document selected, the workflow will typically create a new silo entry or fetch an existing one based on the arguments provided. For example, an import workflow receiving a document identifier as an argument will download the document and create a corresponding silo entry automatically.

​
Error Handling

Any step that causes an error (KO) from which the job can’t recover, and is not handled through a condition, will trigger the error handling flow. To enable this section, tap on Handle Errors at the bottom of the workflow creation screen, then add steps into this area which you want to execute when the job fails (often times setting the entry’s state to Error and possibly sending a notification).

​
FAQ

If your step conditions displays a This step contains deprecated conditions warning, your workflow will continue working normally, but we recommend updating your workflow so that you can modify it without unexpected behavior.Steps under deprecated conditions will display with a warning symbol ⚠️ with the label “Go to [action name]”. Click on the menu button ... and select “Replace”, and then select the replacement action from the sidebar. So, for example, if the deprecated step is labelled “Go to Set State”, replace this step with “Set State” and choose the same configuration as the original step (which you should find further down within the same workflow).Once all deprecated steps are replaced, locate the the referenced action(s) and delete.
